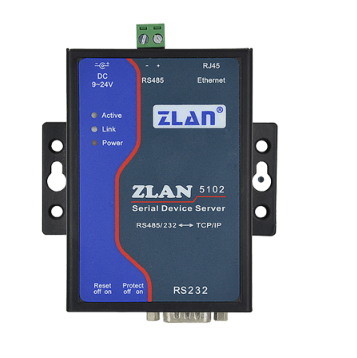

ZLAN5102 (Price 2,300 ฿)

ZLAN5102 serial device server is an industrial converter for RS232/485 and TCP/IP protocol

• Can connect the RS-232/485 serial device to Ethernet
• The first full-duplex, uninterrupted, low-cost server in the industry
• Support TCP server, TCP client, UDP mode
• Support virtual serial port, Web login, or use VirCom for configuration

Product Introduction

Summary

ZLAN5102 is a high performance serial server device. It converts RS485/232protocol to TCP/IP protocol. It can conveniently let your legend serial device connectto Ethernet and Internet, and upgrade the serial device with networking.

The RS232/RS485 port of ZLAN5102 supports Full-duplex/Half-duplex,uninterrupted communication. It embedded with lightning protection circuits. It supports DHCP, DNS. It supports virtual serial driver, and user’s previous PC software using serial communication need not change.
Feature

Support full duplex, high speed converting, and no packet lost.
Hight cost performance.
Support TCP Server, TCP Client, UDP mode, and if communicating with ZLVirCom (our software), it automatically change to Real Com Driver Mode.
Support band rate 1200~460800bps, data size 5~8bits, parity of None, Odd, Even,Mark, Space. Support CTS/RTS hardware flow control.
Equipped freely with our Windows Virtual Serial & Device Management Tool ZLVirCom. It supports virtual serial and searching device or modifying parameters with ZLVircom.
Provide device management library (Window DLL library). It will help user to develop program with VC, VB, Delphi, C++ Builder. User need only use read() or write() function to communicate with ZLAN5102.
The innovative disconnecting detecting method. Whether it running in TCP Server mode or TCP Client mode, once network is disconnected by some reason,the disconnecting detecting method will detected it and reestablished the connecting.
With build-in Web server, its parameters can be modified by web browser.
Support DHCP, easy for IP management and solve IP confliction.
Support DNS. It fulfills the need of access data server through domain name.
Flexible serial data framing setting. It fulfills all kinds of serial data frame requirement.
UDP mode support dynamic destination address mode. It helps for multi-user mange one serial server.
Real Com Driver mode support using the 9-th bit to facilitate communication with milt-device. (the 9-th bit being 0 means data frame and 1 means address frame).
Support searching serial servers and modifying parameters through Internet remotely
Support parameter modifying protection, preventing modifying by accident.Support running with default parameters.
Build-in 2 KV electrical plus protection in RJ45.
High protection of electromagnetic interference, with its high electromagnetic interference protection SECC external shell.

Technical Parameter

Figure

Interface:  Serial:DB9 Male for RS232, 2 PIN terminal for RS485; RJ45 Networking connecter; Power plug-in or terminal
Size:  L x W x H = 9.4cm x 6.5cm x 2.5cm

Communicate interface
Ethernet 10M/100M, 2KV electrical plus protection

Serial parameters
Parity : None, Even, Odd, Space, Mark
Data size:  5～9
Flow control:  RTS/CTS,DTR/DCR, XON/XOFF
Band rate:  1200bps～460800bps

Software
protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Setting method:  ZLVirCom, WEB browser, device management library
Net communi-cation method:  Socket, Virtual serial , device management library

Power
Power: 9~24V DC.

Environment
Running temperature -45～85℃
Storage temp -40~120℃
Humidity 5~95%RH
