VF-946

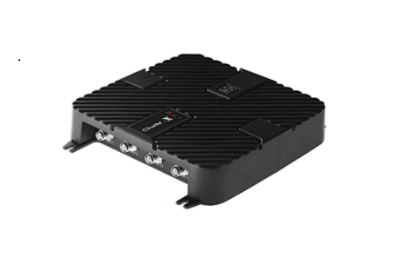

Name：VF-946 4 channels UHF RFID Fixed Reader

• Shell adopt high strength die-casting aluminum, firm and durable, good for heat dissipation when work for a long time in outdoor environment.
• Adopt Impinj IndyR2000 chip, with high-performance multi-tag identification algorithms.
• Compatible with ISO18000-6C and ISO18000-6B protocol, can quickly switch, to realize simultaneously read double-protocol tag.
• Low power consumption and low voltage design, guarantee the products safe and stable operation for a long time.
• With FCC,CE certification.
• Application: logistics supply chain、fixed asset management、personnel/vehicle management、industrial manufacturing

Product features
1. Support EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B standard electronic tags;

2. Working frequency 860-868MHZ，902-928MHZ(Can be adjusted according to the requirements of different countries or regions);

3. Support 1, 2, 4 external TNC antenna interface;

4. Output power up to 30 dbm(Adjustable), inventory tags peak velocity, > 700 PCS/SEC;

5. Support active ,command and trigger a variety of work modes；

6. Reading buzzer and LED status indicator; Support online upgrade firmware through communication interface；

7. Reader provide 2 road light isolated input, 2 road light output I/O interface, convenient for application integration
