K-Type Touch Screen Kiosk & Digital Signage

75" Infrared Multi Touch Screen Kiosk for Shopping Mall/Hospital Information InquiryIR Interactive flat panel,
75 Inch AUO/Innolux/BOE Panel,
Resolution 1920x1080,
10 Touch Points,
Windows OS, i3 CPU/4G/120G

Information interactive Kiosk can be designed and configured with touch screen functions to engage your audience. The kiosks can also be as simple as inserting a USB or SD media cards to display your creative advertisements. You can decide to be more pro-active and adopt a network solution which will in return make your kiosks ready for any mass content updates, no matter their location. Our solutions are fully compatible with all the best CMS's on the market.

Main Features:

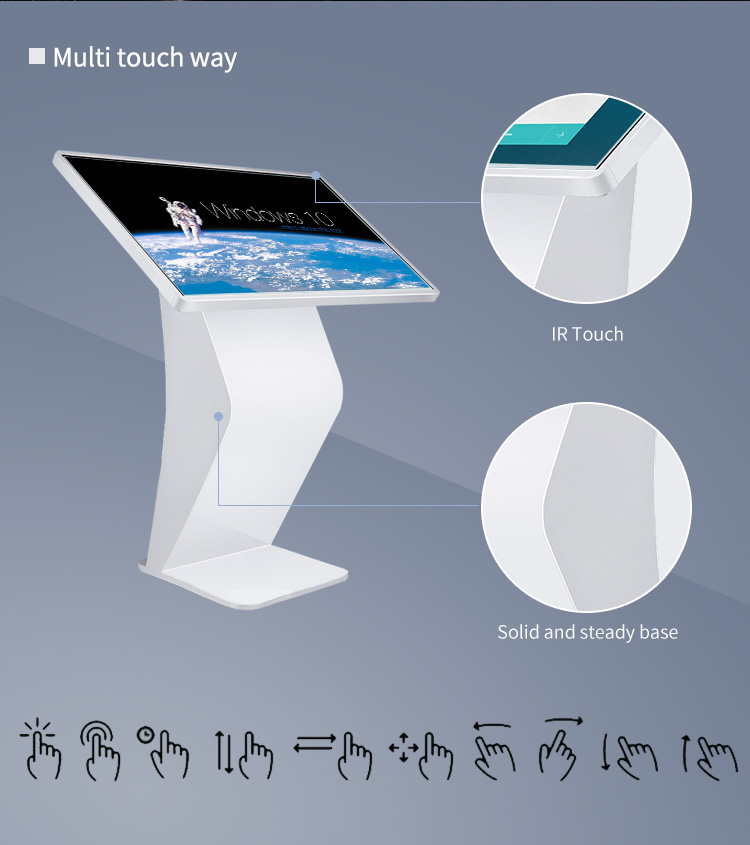

♦ Infrared technology Finger touch
♦ Multi fingers touch, 10 Points of Writing Touch
♦ HDMI -High-Definition Multimedia Interface keep the original high-resolution voice and image signals transmission
♦ Flexible Media Content-provide easy access for quick media changes and service
♦ Manufacturer supplying SKD and OEM service
♦ Wireless(Optional)
♦ Using anti-glare safety glass to protect the panel

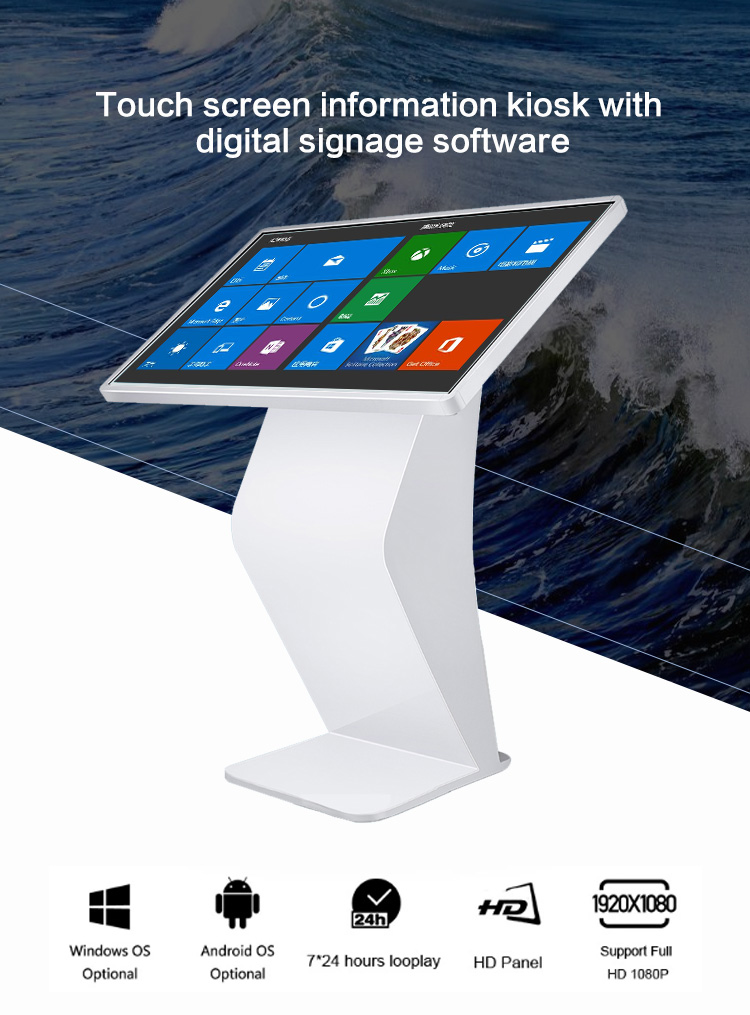

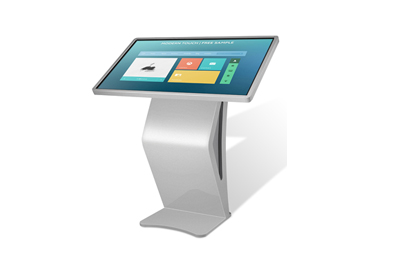

Product Show:

Parameters:
Product Name    75" Information Kiosk
Model                                         GQ-C-75B-K
Viewable size                          1723.48(H)x1001.52(V)mm
life span                                    50000 hours
Aspect ratio                            16:9
Brightness                               450nits
Contrast                                   3000:1
Backlight                                 LED
View angle                              178°(V)/178°(H)
Physical resolution              1920(H) X1080(V)
System of video                    PAL/SECAM

Parameters- Touchscreen
Touch technology                                 Multiple infrared scanning technology
Touch type                                              10 points infrared

Touchscreen embedding methods  Front access (Available for front maintenance)
drive mothed                                          HID free drive
Material of writing surface                4MM tempered glass(anti-glare is optional)
Touchscreen induction mothed       finger,writing pen,gloved hand or any other Non-transparent touch-sensitive media
Touch screen positioning resolution  1920*1080

Parameters - PC
OPS CPU                    intel core i3
Memory                     RAM 4G DDR3
Hard disk                   120G SSD
Operation system   Windows 7
Graphic card             Integrated
Realtek                       Integrated
WIFI                             Open end 2.4G,150Mbps
Bluetooth                  Open end

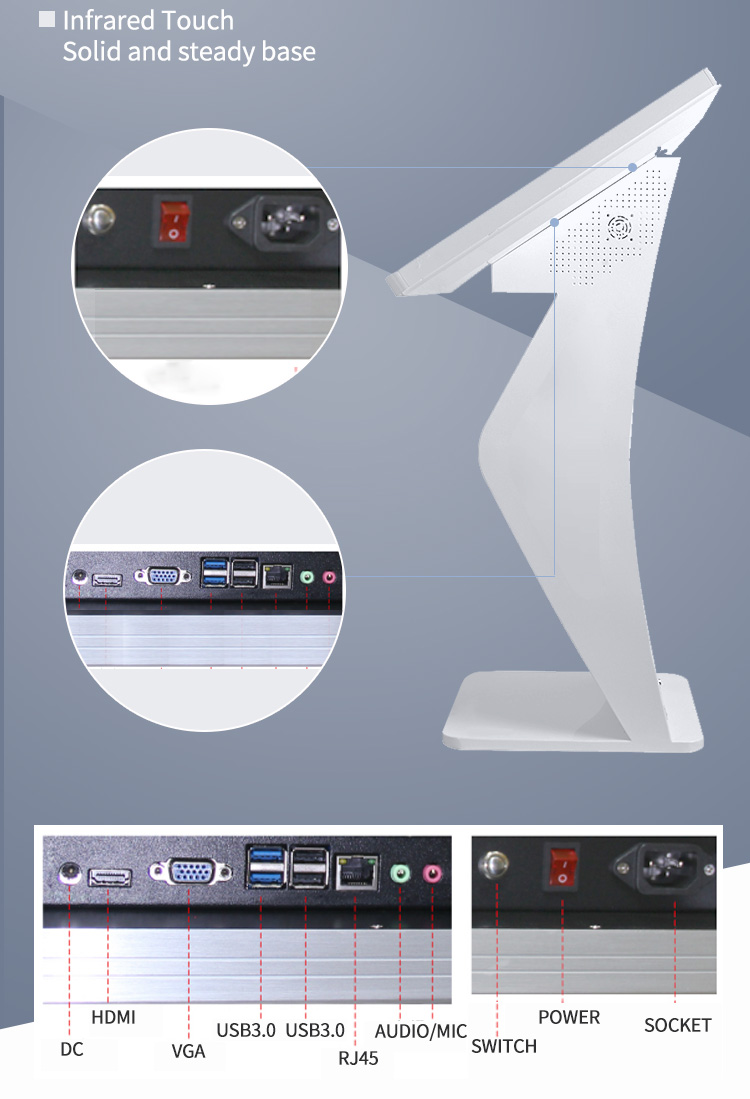

interface                    USB x4, earphone output x1,MIC x1,VGA output x1,Support HDMI Input x1

Packing Details
Gross weight        45KG
Packing size         1350*850*140mm
Net weight            38KG

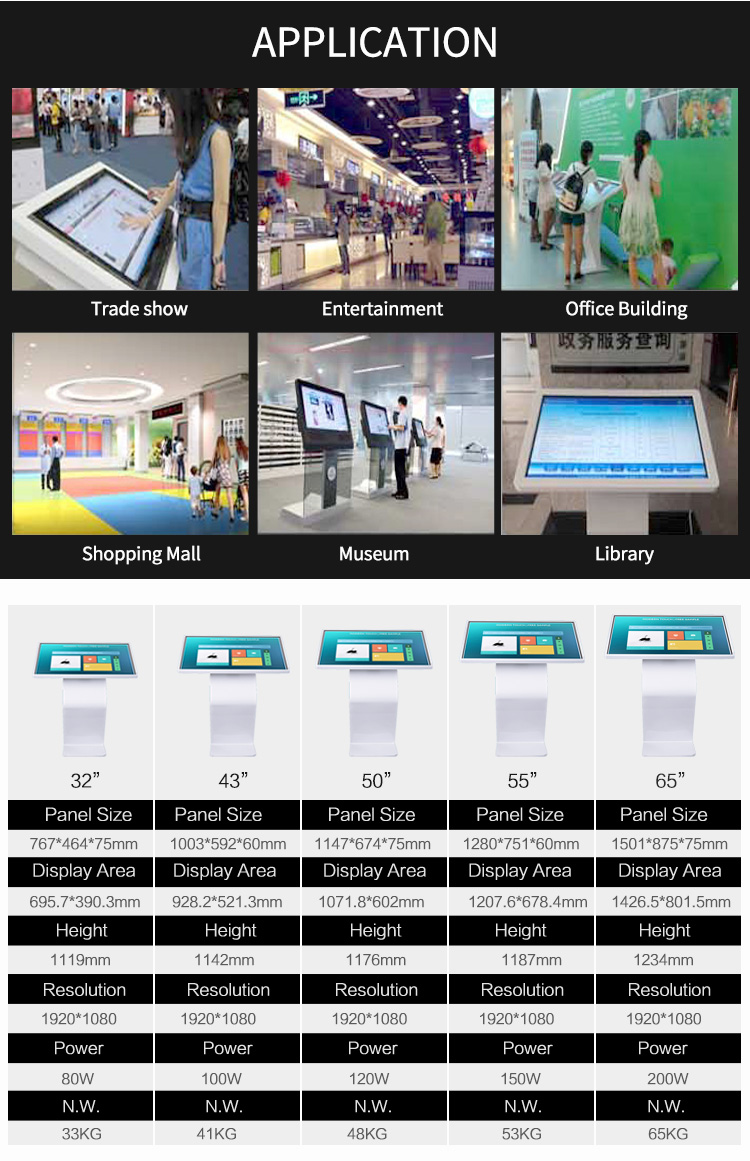

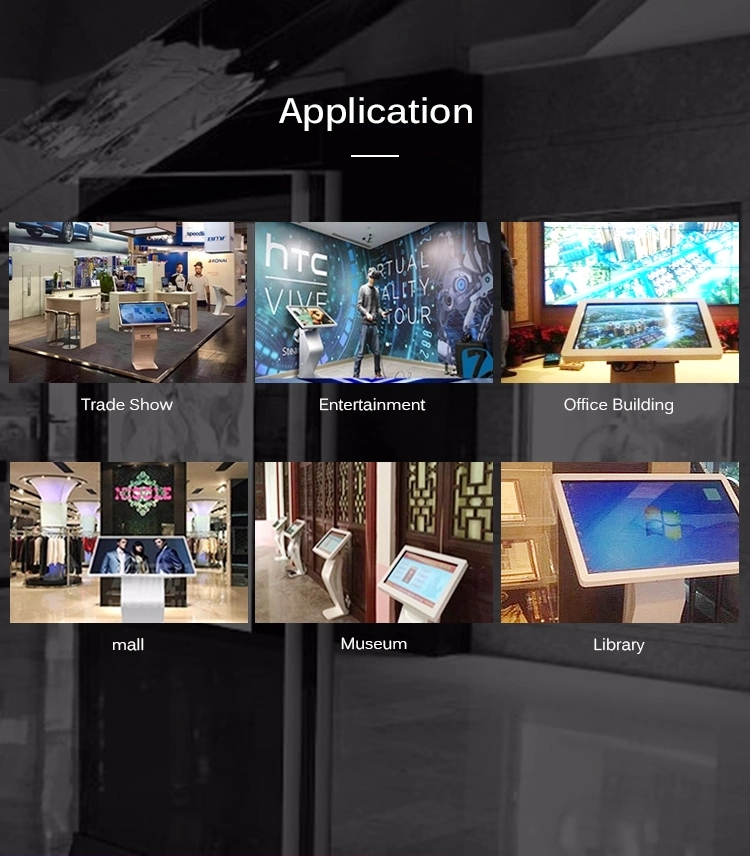

Product Applications:
