Touch Screen TV PC All in One Interactive Whiteboard
637 จำนวนผู้เข้าชม |

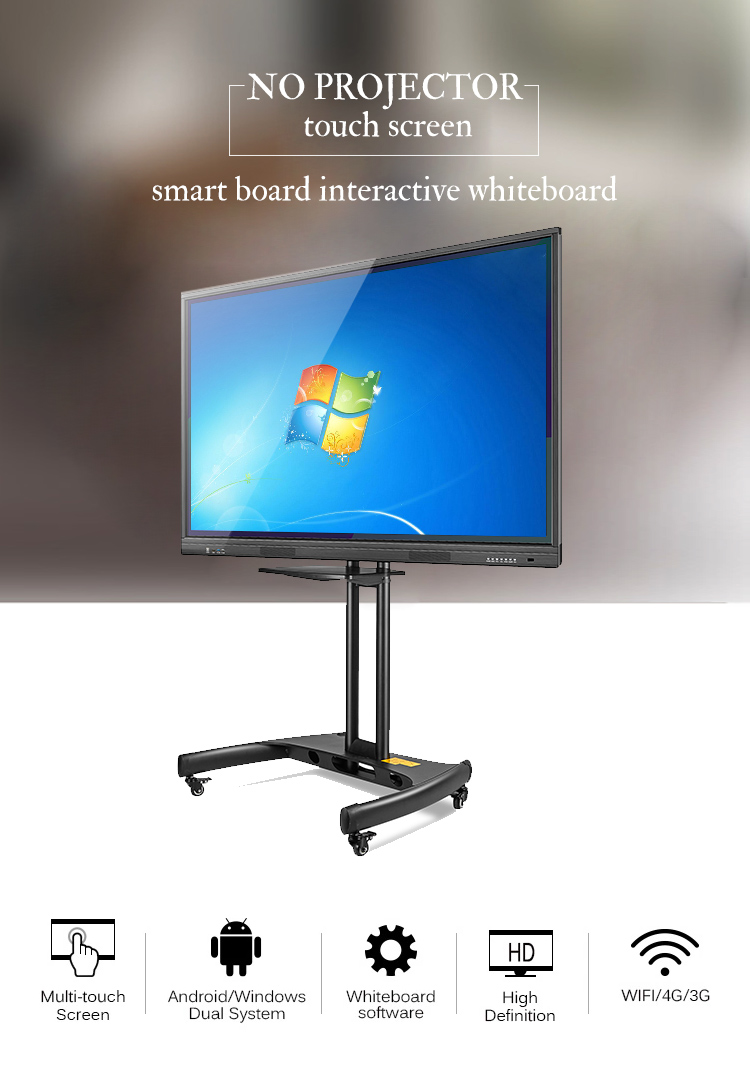

86" Touch Screen TV PC All in One Interactive Whiteboard
IR Interactive flat panel,
86 Inch LG Panel,
Support 4K Resolution,
10 Touch Points,
Windows & Android Dual OS,
Android: 1G RAM + 4G ROM,
OPS PC: i3 CPU/4G/120G
Touch LCD - all in one touch monitor is an interactive TV, it built-in with LCD/LED and touch screen (and PC for optional).
We use the most popular technology infrared touch to achieve interaction between users and the monitor.
All in one touch monitor is also a LCD whiteboard, use the LCD to instead of the projector for image presentation.
Connect with built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement,
conference PPT, classroom courses, play movies and etc…
Main Features:
♦ Infrared technology Finger touch
♦ Multi fingers touch, 10 Points of Writing Touch (32 Points touch);
♦ HDMI -High-Definition Multimedia Interface keep the original high-resolution voice and image signals transmission
♦ Flexible Media Content-provide easy access for quick media changes and service
♦ Drawer-type OPS BoxDifferent color for choose
♦ Manufacturer supplying SKD and OEM service
♦ Wireless(Optional)
♦ Using anti-glare safety glass to protect the panel
Uses for whiteboard may include:
♦ Running software that is loaded onto the connected PC, such as a web browsers or other software used in the classroom.
♦ Capturing and saving notes written on a whiteboard to the connected PC
♦ Capturing notes written on a graphics tablet connected to the whiteboard
♦ Controlling the PC from the white board using click and drag, markup which annotates a program or presentation
♦ Using OCR software to translate cursive writing on a graphics tablet into text
♦ Using an Audience Response System so that presenters can poll a classroom audience or conduct quizzes, capturing feedback onto the whiteboard

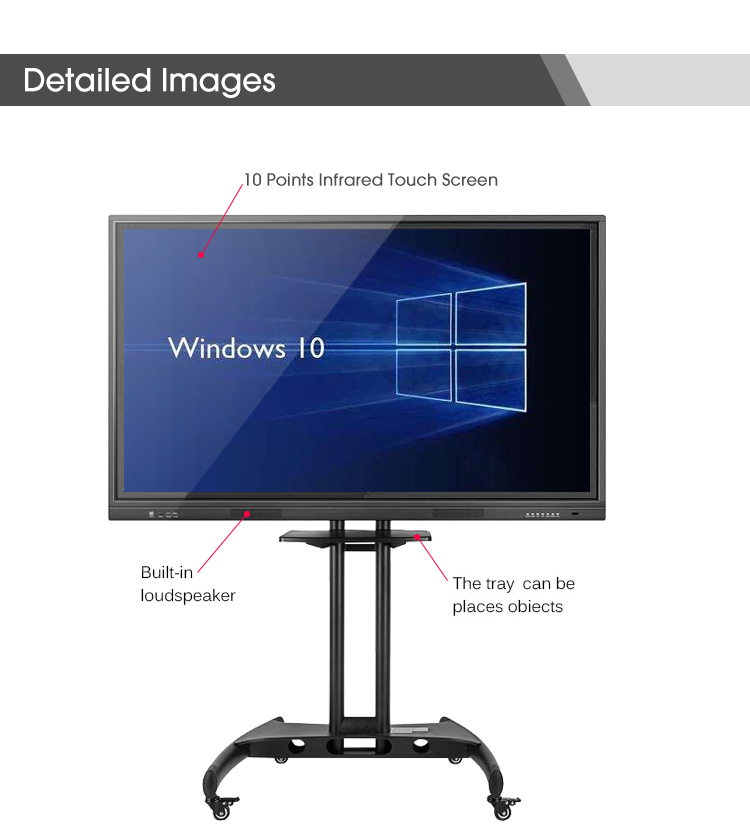

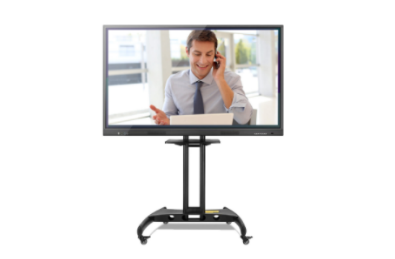

Product Show:

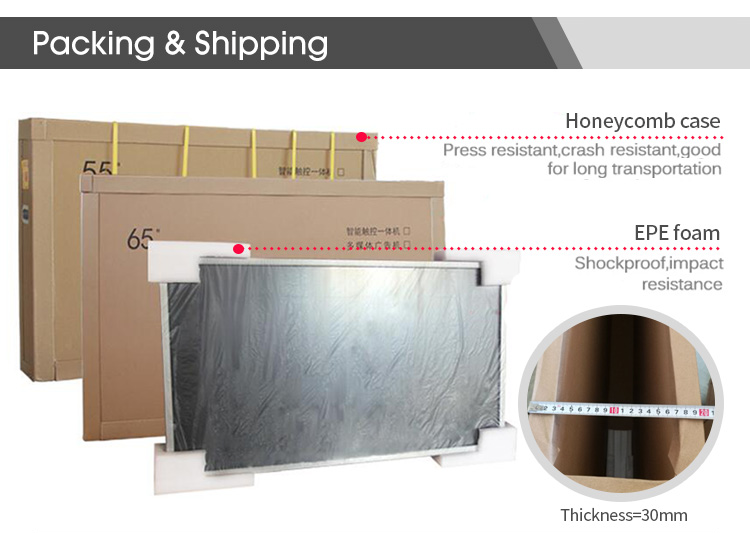

Package for interactive whiteboard
Parameters:
Product Name 86" interactive whiteboard
Model GQ-BC-86H
Viewable size 1858.48(H)x1044.52(V)mm
life span 50000 hours
Aspect ratio 16:09
Brightness 400nits
Contrast 4000:01:00
Backlight LED
View angle 178°(V)/178°(H)
Physical resolution 4096(H) X4096(V)
System of video PAL/SECAM
Parameters- Touchscreen
Touch technology Multiple infrared scanning technology
Touch type 6 points infrared
Touchscreen embedding methods Front access (Available for front maintenance)
drive mothed HID free drive
Material of writing surface 4MM tempered glass(anti-glare is optional)
Touchscreen induction mothed finger,writing pen,gloved hand or any other Non-transparent touch-sensitive media
Touch screen positioning resolution 4096X4096
Parameters - PC (OPS)
Mainboard H81
OPS CPU intel core i5
Memory RAM 8G DDR3
Hard disk 1TB HDD
Operation system Windows
Graphic card Integrated
Realtek Integrated
Wireless keyboard / Mouse Optional
WIFI Open end 2.4G/5G,150/300Mbps
Bluetooth Open end

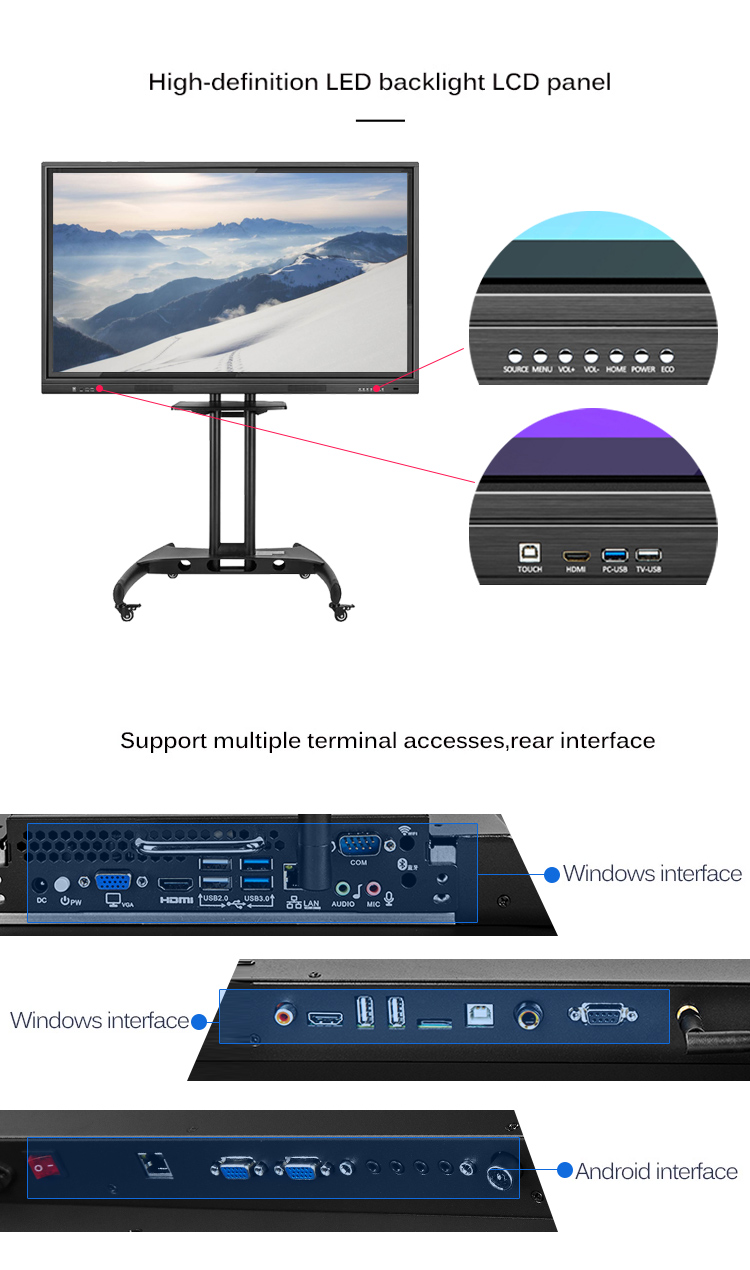

interface USB x4, earphone output x1,MIC x1 ,VGA output x1,Support HDMI Input x1
Parameters - Android
Basic frequency CPU 4-core 1.2G
System version android 4.4.2
Memory DDR3 1G
WIFI IEEE 802.11 b/g/n 2.4GHz 1T1R
Flash 4G
