VT-SM2-1408SE-C

  VT-SM2-1408SE-C

• 1.6MP @60 fps
• Built-in high-precision positioning, measurement, calibration, logic, defect detection, OCR and code reading algorithms
• Support RS-232, TCP, UDP, FTP, Modbus and other communication modes.
• Rich IO interface, can connect to multiple input and output signals.

Product Description

Information
PD No. :  VT-SM2-1408SE-C08
PD Line :  SM2 Series

Tools
Vision Tool :  Existence、Count、Positioning、Logic、Measurement、Recognition
Solution Capacity :  Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored.
Communication Protocol :  RS-232、TCP、UDP、FTP、Modbus

Sensor
Sensor Type :  CMOS
Sensor Size :  1/2.9”
Shutter :  Global Shutter
Resolution :  1408 px x 1024 px
Pixel size :  3.45 μm x 3.45 μm
Frame Rate :  60 fps
Mono/Color :  Color
Image Format :  Mono 8、RGB 8
Exposure Time : 16 μs ~ 1 sec

Camera Data
Ethernet :  Fast Ethernet（100Mbit/s）
Digital I/O :  17-pin M12 connector provides power and I/O, including 1 input, 2 configurable I/Os, 1 output; 1 RS-232
Power Consumption :  12 ~ 24 VDC

Design

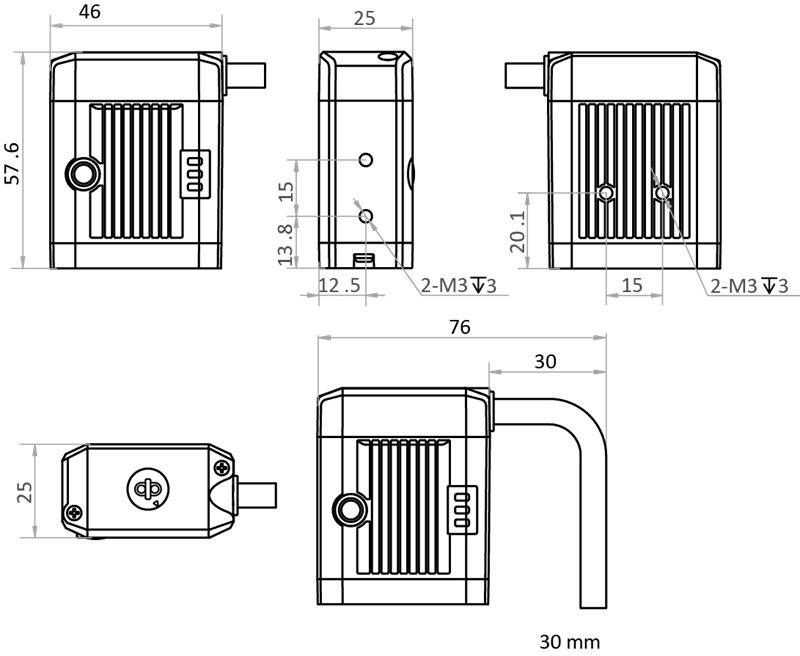

Dimension :  46 × 57.6 × 25 mm
Lens Mount :  M12-Mount,Manual Focus
Focal Length :   8mm
Lens Cap :  Transparent lens cap
Light Source :  White
Temperature :  0- 50°C（Working），-30- 70°C（Storage）
Weight  : 220g

Software Environment
Driver , SDK :   LEO SM Series Camera Secondary Development Kit (SM-Datum)

Operating System :  Windows
