ISPEEDY50MT13C-SE

 ISPEEDY50MT13C-SE

• 1.3MP@5000fps
• 10 GigE data transmission interface, compatible with GigE
• Supports up to 4TB of optional memory
• Supports up to 64 memory partitions

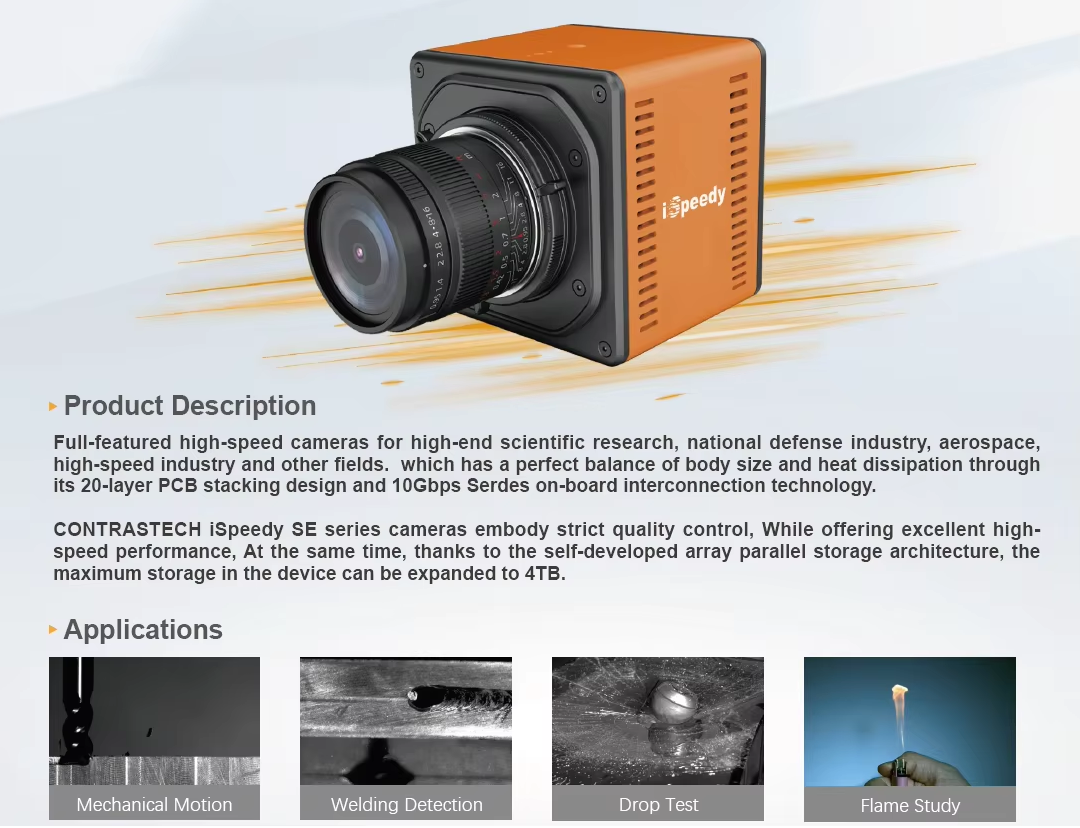

Product Description

Information
PD No. :  ISPEEDY50MT13C-SE
PD Line :  ISPEEDY Series

Sensor
Resolution :  1280×1024
Shutter :  Global Shutter
Pixel Size :  14.6μm
Full FPS :  5000fps
Max.FPS :  350000fps
Mono/Color :  Color

EMVA Data
Dynamic Range :  60 dB
Sensitivity :  ISO21000

Camera Data
Standard RAM :  16G、32G、64G (optional)
Extended Memory :  1T、2T、4T (optional)
Minimum Exposure Time :  1us(standard)、100ns(optional)
Pixel Bit Depth :  8 / 10 / 12 bits
Data Interface :  10 GigE,Adaptive GigE
Video Signal Output :  Ethernet
Recording Mode :  Start, End, Center, Random, Manual
Trigger Mode :  Manual, IO, Image
I/O :  Input: Trigger (TTL/switch) signal, sync signal, ready signal, event signal, IRIGB code signal.
Output: Trigger signal, sync signal, ready signal
Power Supply :  DC24V
Power Consumption :  <30W

Design

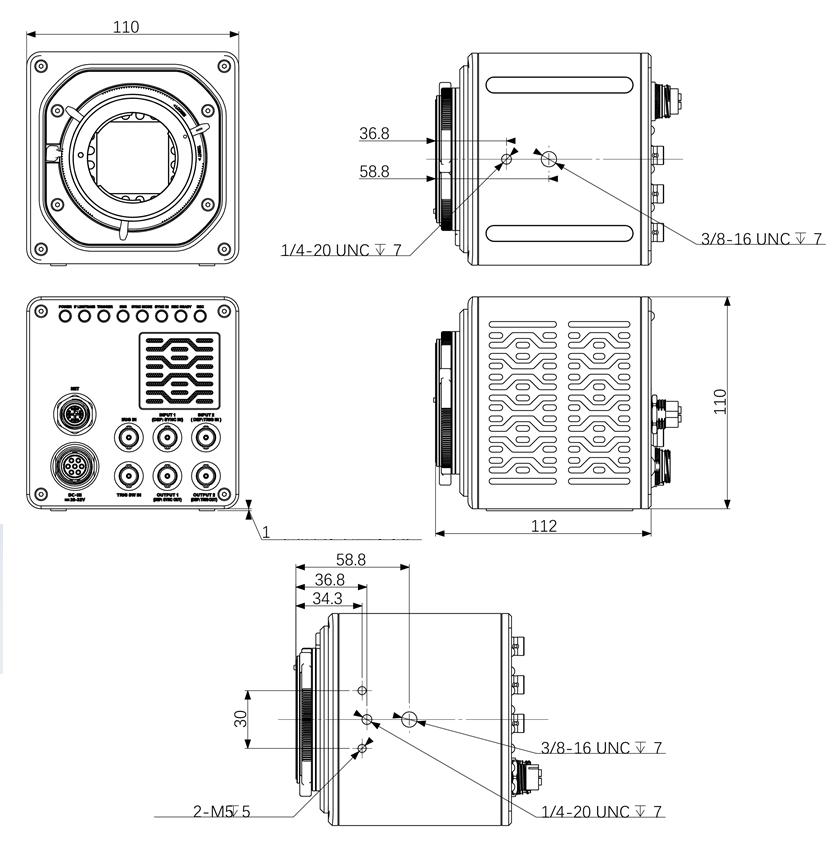

Dimension :  90D×110W×110H
Lens Mount :  E-mount
Fan Control :  The fan can be turned on and off remotely and can auto adapt to different temperatures
Working Temperature :  -10~50 °C,below 95% (no condensation);versions with wide temperature range of -35~65 °C can be customized
Weight :  <1.6kg

Software Environment
Driver , SDK :  iSpeedy Series Camera Secondary Development Kit
Operating System :  Windows
