VT-SM2-1408DL-C

 VT-SM2-1408DL-C

• 1.6MP @60 fps
• Built-in high-precision positioning, measurement and identification algorithms
• Output results via RS-232 and Ethernet, and cooperate with other processes via I/O
• Optional multi-color light source
• Optional multi-focal length lens

Product Description

Information
PD No. :  VT-SM2-1408DL-C06
PD Line :  LEO SM2 Series

Tools
Vision Tool :  Existence、Count、Location、Measurement、Logic、Recognition、Defect detection、Deep learning
Solution Capacity :  Supports solution importing and exporting, up to 32 solutions
Communication Protocol :  RS-232、TCP、UDP、FTP、Modbus、MELSEC/SLMP、FINS、Keyence KV

Sensor
Sensor Type :  CMOS
Sensor Size :  1/2.9”
Shutter :  Global Shutter
Resolution :  1408 px x 1024 px
Pixel size :  3.45 μm x 3.45 μm
Frame Rate :  60 fps
Mono/Color :  Color
Image Format :  RGB 8，Mono 8
Dynamic Range :  71.4 dB
Exposure Time :  16 μs ~ 1 sec

Camera Data
Ethernet :  Fast Ethernet（100Mbit/s）
Digital I/O :  Input signal × 2、output signal × 3、bi-directional I/O × 3
Power Consumption :  24 VDC / 48W

Design

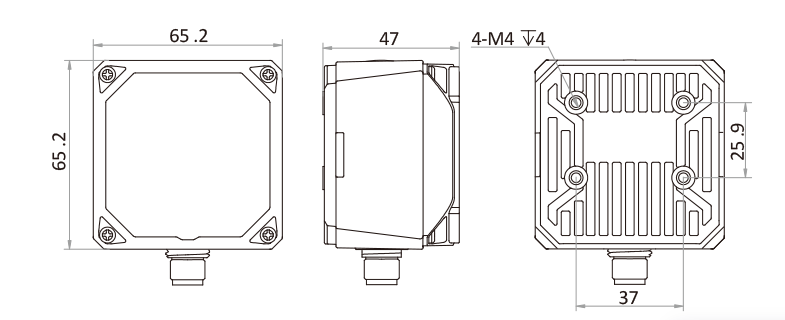

Dimension(L x W x H) :  65.2 × 65.2 × 47 mm
Lens Mount :  M12-Mount
Focal Length :  6mm
Lens Cap :  Transparent lens cap. Polarization or Half-Polarization lens cap（optional）
Light Source :  White/Red/blue/near-infrared（optional）
Temperature :  0- 50°C（Working），-30- 70°C（Storage）
Weight :  280g

Software Environment
Driver , SDK :  LEO SM Series Camera Secondary Development Kit（SM-Datum）
Operating System :  Windows
